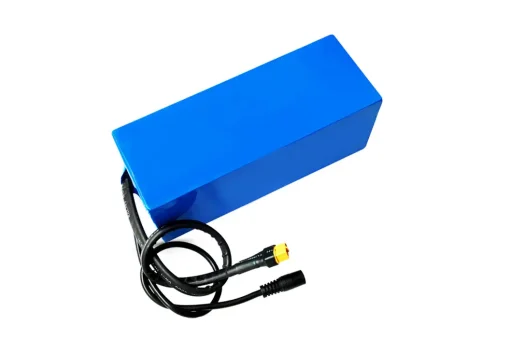

25.9V 14.5Ah Lithium ion 18650 Mobility Battery Pack for Mobility Vehicles
To make battery pack systems that work well in mobility-powered cars, engineers have to be very careful. The batteries must be small, have stable high-current discharge, be resistant to vibration, and have a consistent runtime. Many makers have trouble finding the right balance between safety, durability, and energy density when they are working with limited mechanical space.
This case showcases how CMB developed a custom 25.9V 14.5Ah 7S5P lithium-ion battery pack tailored for mobility applications, ensuring stable power delivery and long-term performance.
Key features：
- 7S5P design using 35 high-quality 2900mAh 18650 cells
- 15A continuous, 25A peak discharge BMS
- Strong vibration resistance for mobility applications
- Compact dimensions optimized for restricted compartments
- Anderson connector for plug-and-play integration
- Long cycle life and stable energy output
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 25.9V | 3.7V/cell |
| 2 | Nominal Capacity | 14.5Ah | @0.2C |
| 3 | Minimum Capacity | 13.78A | / |
| 4 | Shipment Voltage | / | / |
| 5 | Initial Internal Impedance | ≤8mΩ | AC 1KHZ |
| 6 | Standard Charge Voltage | 29.4V | 4.2V/Cell |
| 7 | Standard Charge Current | 7.25A | |
| 8 | Max. Charge Current | 14.5A | |
| 9 | Standard Discharge Current | 2.9A | |
| 10 | Max. Discharge Current | 15A | / |
| 11 | Burst Discharge Current | 25A | ≤5s |
| 12 | Discharge Cut-off Voltage | 17.5V | 2.5V/cell |
| 13 | Cycle Life | ≥500 cycles | Retention: ≥80% |
| 14 | Charge Temperature | 0°C~45°C | Standard Charge |
| 15 | Discharge Temperature | -20°C ~60°C | Standard Discharge |
| 16 | Storage Temperature | -20°C~45°C | ≤3 Months |
| -20°C~25°C | ≤1 Year | ||
| 17 | Weight | About2.09 | kg |
| 18 | Special Request | / | / |
7S5P 25.9V 14Ah 18650 Battery Pack FAQs
Can this pack be customized to fit my device’s mechanical space?
Absolutely. This 7S5P pack was originally built for a space-limited enclosure, and we can redesign the shape, dimensions, and wiring to fit your device.
Does the battery have protection features?
Yes, the built-in BMS provides: over-voltage & under-voltage protection, over-current protection, short-circuit protection, temperature protection for both charging and discharging.
Can I request different capacities or BMS communication functions?
Yes. Available customizations include:
Different capacities (10Ah / 14Ah / 20Ah)
SMBus / UART / CAN communication
High-rate discharge or long-cycle versions
Is certification available for this battery pack?
Yes. We provide UN38.3 test reports for shipping compliance, and can also assist with IEC62133 or UL2054 certification processes based on your project needs. Certification execution is coordinated together with your final product testing.
