Custom Waterproof Battery Pack Manufacturer | IP65, IP67 & IP68 Solutions

CM Batteries designs and validates custom waterproof battery packs to the exact ingress rating your application needs — from splash/dust-rated IP65 enclosures to fully submersible IP68 battery packs for ROVs, AUVs, and subsea sensors. Every waterproof battery pack is built on a vacuum-potted, sealed-housing platform and tested against your specific depth, duration, and environmental profile, with documented evidence — not just a rating printed on a datasheet.

Request-a-Quote-1

Which Waterproof Rating Does Your Application Need?

Compare protection level, test condition, and typical application before you spec your pack

IP65 outdoor splash and dust resistant battery pack

IP65 Splash & Dust Battery

Protection Dust + water jets, any direction
Test Condition Low-pressure jet, no submersion
Fits Outdoor / Agri Robots / AGV

Designed to meet protection requirements against dust ingress and low-pressure water jets from any direction (IEC 60529 / GB 4208).

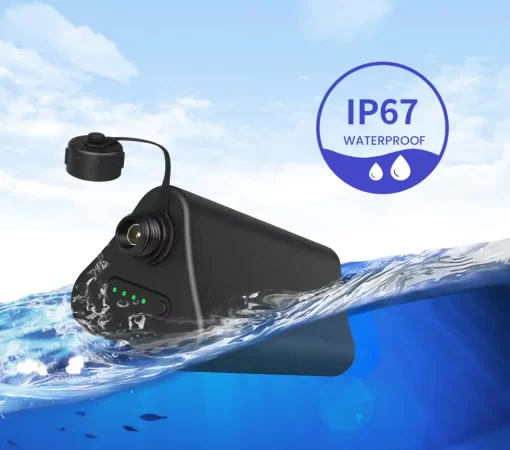

IP67 waterproof battery temporary immersion

IP67 Waterproof Battery

Protection Temporary full immersion
Test Condition 1m depth, 30 minutes
Fits Handheld Devices, Equipment at risk of accidental drops in water

Withstands dust ingress and temporary full immersion per IEC 60529 / GB 4208.

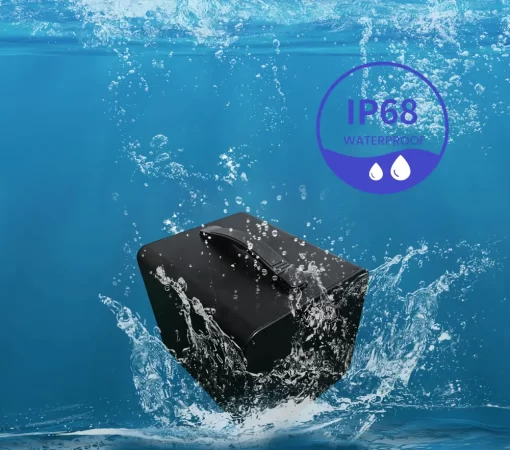

IP68 underwater lithium ion battery continuous submersion

IP68 Underwater Battery

Protection Continuous submersion
Test Condition 1–100m, up to 5hr+ (custom)
Fits ROV / AUV / Subsea Sensors

Custom pressure-validated to your exact depth and duration — internal test report available on request.

i

Note: IEC 60529 does not define a specific submersion depth or duration for IP68. It requires the manufacturer and customer to agree on test conditions more severe than IP67. Don’t select on the IP68 label alone — confirm the actual test depth and duration behind it.

Watch the Actual Test, Not Just the Datasheet

Most waterproof battery packs claims are a printed IP rating with no visible proof behind it. Here’s our actual IP67 immersion test — the battery pack submerged in 1 meter of water for 30 minutes with no bubble leakage, confirming seal integrity.

“Waterproof Test IP67 For CMB Lithium Battery 12V 100Ah” — shows discharge performance in humidity and working condition after a one-meter water pressure test. Pressure-chamber simulation footage for deeper/longer custom-rated packs is available on request during the technical review stage.

Six Layers Behind a Real IP Rating

Marketing loves one headline layer — “IP68 + full potting.” Real waterproofing needs all six. Tap a layer to see how it works.

IP67/68
Vacuum Potting
Laser Welding
Nano Coating
Breather Valve
Hundreds of Test
1 · Structural Design — Housing & Interfaces

One-piece stamped/extruded aluminum housing with laser-welded seams, no gap at the joint. Cable outlets use IP67/68-rated waterproof connectors, sealing sleeves, and silicone plugs.

2 · Sealing Materials — Static Seals

O-rings and gaskets (silicone/fluoroelastomer), insulating buffer pads, and sealant close off every assembly gap the housing design leaves behind.

3 · Component Protection — BMS Coating

Conformal coating (acrylic/silicone) or a dip-applied nano coating on the protection board, guarding against humidity and salt-fog corrosion at the component level. Spec available on request.

4 · Potting CORE LAYER — Full / Dual Vacuum Potting

Potting compound fills every internal cavity, vacuum-degassed and cured. One step, four jobs: waterproofing, vibration damping, heat dissipation, flame-retardant delay.

Why not oil immersion? A breached oil-filled housing can leak oil into surrounding water — a real environmental risk for marine equipment. We use solid, contained potting instead.

5 · Pressure Equalization — Breather Valve

ePTFE membrane valve equalizes internal/external pressure (preventing the “breathing effect” from drawing in moisture) and vents pressure in milliseconds during thermal runaway. Available as a specified option.

6 · Verification — Factory Test Chain

Hermetic pressure test → IPX7/IP68 immersion → salt fog → thermal cycling → drop/vibration → dust ingress, before any pack ships.

One-line test: the IP rating alone means nothing — check for potting + breather valve + hermetic testing together, or the “breathing effect” pulls moisture in over time.

Every Rating Is Custom-Validated to Your Spec

timeline_pre_loader
How We’ll Work Together
Discover
We’ll ask questions via our inquiry about your waterproofing requirements, including IP rating, voltage, capacity, and special environmental conditions.
Define
Our engineers will outline a waterproof battery solution tailored to your application.
Estimation
We’ll provide a quotation based on your volume and customization needs.
Prototype
You’ll receive a waterproof battery sample for testing and feedback.
Contract
Once approved, we’ll proceed with the contract and production plan.

Waterproof Battery Pack Technical Articles

Comprehensive Guide to IP65, IP67 and IP68 Ratings for Waterproof Lithium Battery Pack Designs-1

Guide to IP65, IP67 and IP68 Ratings for Waterproof Lithium Battery Pack Designs

lithium batteries in cold weather

Battery Enclosure Design for Custom Battery Pack

Polymer batteries for drones

What Will Happen If The Lithium Ion Battery Is Submerged In Water?

Self-Heating-LiFePO4-Batteries

Battery Connector Types for Lithium Battery Packs

Custom Waterproof Battery Pack FAQ

What's the difference between IP67 and IP68?

IP67 covers temporary immersion — 1 meter depth for 30 minutes. IP68 covers continuous submersion at a depth and duration agreed between manufacturer and customer, since the standard itself doesn’t fix those numbers.

Is IP65 the same as waterproof?

No. IP65 protects against dust and water jets, but not submersion — it shouldn’t be immersed even briefly. If your equipment might ever be dunked or submerged, you need IP67 or IP68, not IP65.

Can CMB test to a custom depth and duration beyond standard IP67/IP68 baselines?

Yes. Every waterproof battery pack is engineered and validated against the specific depth, duration, and environmental profile you specify, with an internal test report delivered alongside your prototype or production batch.

Can you customize size/shape for our devices?

Yes. We design flexible form factors (pouch, cylindrical, prismatic) to fit your enclosure.
Options:
Custom molds for plastic/aluminum casings.
Waterproof cable and connectors customization.

Tailored Customization

Our design team can create custom battery designs for just about any device or machine.

Timely Delivery

Our efficient production and distribution process gets your product delivered in a timely manner.

Quality Guarantee

We stand by our products and guarantee you’ll be happy with your purchase.
