Custom 26650 Battery Pack
CM Batteries specializes in designing and manufacturing custom 26650 battery packs that deliver exceptional performance in low-temperature environments, high-density applications, and mission-critical operations.
Utilizing advanced LFP (LiFePO4) chemistry, our batteries provide long-lasting, stable power even in the most demanding conditions.
Key Advantages of CMB’s Best 26650 LiFePO4 Battery Packs:
- 🌡️ Wide Temperature Range: Charging: -30°C to 60°C; Discharging:-50°C to 60℃
- ⚡ High Energy Density: Up to 4500mAh capacity per cell
- 🔄 Extended Cycle Life: 3000+ cycles at 80% DoD
- 🚀 High-Rate Discharge: Capable of 20C continuous discharge
- 🛡️ Robust Reliability: Consistent performance in harsh environments
Application of 26650 Battery Pack
Custom lithium-ion 26650 battery packs — built for your needs, beyond listed applications.
Custom 26650 LiFePO4 Battery Pack Cases

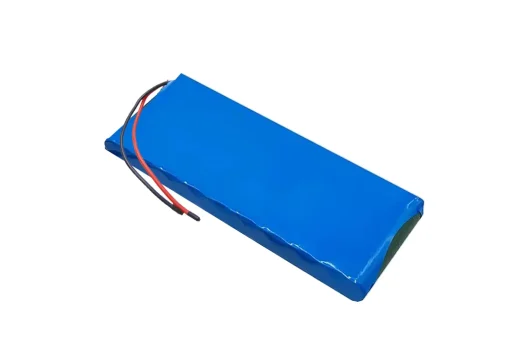

Low Temperature 6.4V 16Ah 26650 LiFePO4 Battery
Configuration :2S5P ,made of 10pcs 3.2V 26650 3.2Ah low temperature cells
Wide temperature operation ranges: -20～60℃
Overdischarge, overcharge, ESD protection
Battery package: PVC heat shrink film
Application: outdoor monitor,security equipment,medical

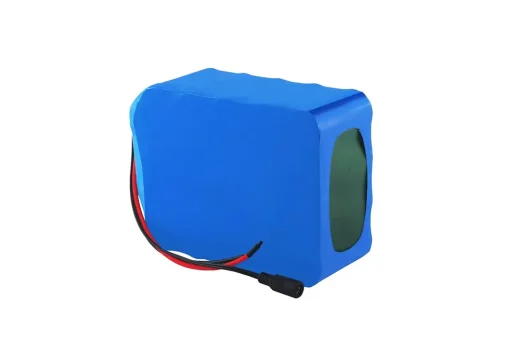

High capacity 12.8V 18Ah 26650 LiFePO4 Battery
Configuration:4S4P,made of 16pcs high capacity 26650 4500mAh LiFePO4 cells
Compact size: 110*113*70 (mm)
Lifecycles: About 5000 times
Application: Medical devices
Weighlight: 1.7KG

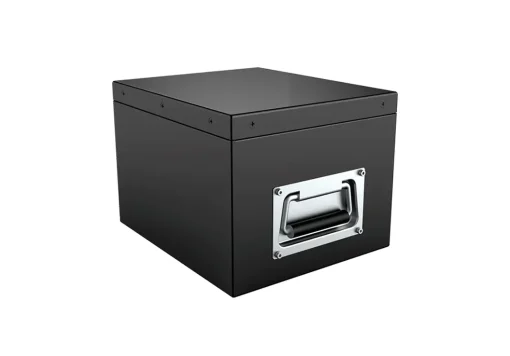

Low Temperature 25.6V 32Ah 26650 LiFePO4 Battery Pack
Configuration :7S10P,made of 70pcs 3.2V 26650 3200mAh low temperature cells.
Wide temperature range: Charge: -30～60℃ and Discharge: -50～60℃
Capacity retention is ≥90% at -40℃ low temperature
Life cycles: Over 2000 cycles at 80% DoD
Enclosure: metal plate housing

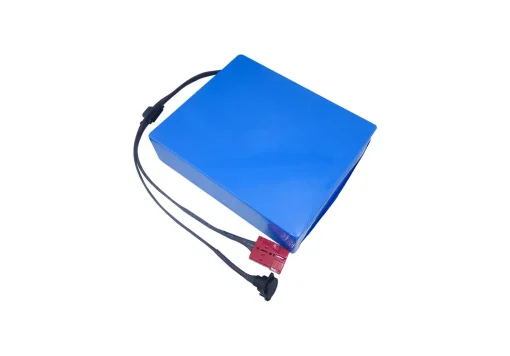

Wide Temperature 38.4V 32Ah LiFePO4 26650 Battery Pack
Configuration: 12S10P,made of 120pcs low temperature 3.2V 26650 3.2Ah LiFePO4 cells
Wide temperature range: Charge: -30～60℃ and Discharge: -50～60℃
Integrated with smart BMS, Bluetooth function
Application: Outdoor test equipment
Warranty: 5 years
Low Temperature 51.2V 51.2Ah 26650 Battery Pack
Configuration:16S16P,made of 256pcs low temperature 3.2V 26650 3.2Ah cells
Wide temperature operation ranges: -30～60℃
Metal housing with Waterproof IP67
RS485 communication protocol
Application: Outdoor backup power system
High Discharge 51.2V 25Ah 26650 LiFePO4 Battery Pack
Configuration:16S10P,made of 160pcs high discharge rate 26650 2.5Ah 20C cells
Built with BMS, discharge current: 50, and peak discharge current: 100A
RS485 communication protocol
Application: power & garden tools, robots
Weight: 16KG
More Technical Articles on 26650 Battery Pack
Lithium-ion Batteries: 18650 Battery Vs 26650 Battery
Custom Special Battery:Tailored Energy Solutions for Specialized Applications
How to Differentiate Battery Cells, Modules, and Packs?
Custom 26650 Battery Packs FAQs
What is 26650 cells?
26650 battery cell is a cylindrical lithium-ion cell measuring 26 mm in diameter and 65 mm in length. Compared with the popular 18650 battery, a 26650 lithium-ion cell delivers higher capacity, stronger discharge performance, and longer cycle life.
What is the wide temperation range for CMB’s custom battery packs
CMB has engineered innovative lithium-ion battery wide temperature range technology capable of reliable operation across a wide temperature range, from -40˚C to 85˚C (-40℉ to 185℉).
Does CMB’s 26650 battery pack connect in series or parrallels ?
Of course,but you should obey the connection guide from CMB’s team
What is the cycles of CMB’s 26650 battery pack?
The cycles ranges of the 26650 battery pack is from 2000 times to 7000 times. Different 26650 battery pack solutions will have different cycles.
