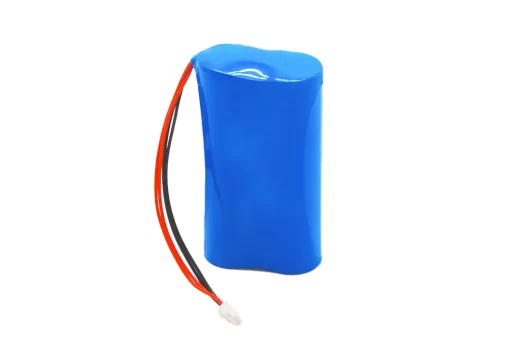

High temperature 7.2V 750mAh Li-ion 14500 Battery Pack
The 7.2V 2S1P 14500 Rechargeable Li-ion Battery Pack from CM Batteries is designed for compact devices requiring higher voltage. It integrates two precision-matched cells and a built-in Protection Circuit Board (PCB) to deliver safe, stable performance even in demanding environments.
Engineered for applications such as medical sensors, handheld measuring instruments, security transmitters, and wireless communication modules, this pack achieves an optimal balance of energy density, safety, and compact size—key criteria for professional-grade portable devices.
Key features：
- Voltage & Capacity: 7.2V 750mAh (2S1P configuration)
- Protection: Built-in PCB for charge/discharge safety
- Temperature Range: Operates reliably from -20℃ to +60℃
- Customization: Flexible options for wiring, connectors, and packaging
- Test Data: High-temperature charge/discharge curve verified
7.2V 750mAh 14500 Battery Pack Parameter
| No. | Item | Specification | Note |
|---|---|---|---|
| 1 | Nominal Voltage | 7.2V | 3.6V/Cell |
| 2 | Nominal Capacity | 0.75Ah | @0.2C |
| 3 | Minimum Capacity | 0.68Ah | — |
| 4 | Initial Internal Impedance | ≤150mΩ | AC 1KHZ |
| 5 | Standard Charge Voltage | 8.4V | 4.2V/Cell |
| 6 | Standard Charge Current | 0.14A | @0.2C |
| 7 | Max. Charge Current | 0.7A | — |
| 8 | Standard Discharge Current | 0.14A | @0.2C |
| 9 | Max. Discharge Current | 3.5A | — |
| 10 | Burst Discharge Current | 6-10A | ≤20ms |
| 11 | Discharge Cut-off Voltage | 5.4V | 2.7V/Cell |
| 12 | Cycle Life | ≥400cycles | Capacity retention ≥70% |
| 13 | Charge Temperature | 0°C~+60°C | Standard charge |
| 14 | Discharge Temperature | -20°C ~+60°C | Standard discharge |
| 15 | Storage Temperature | -20°C~45°C | ≤3 months |
| -20°C~25°C | ≤1 year | ||
| 16 | Weight | About 50 | g |

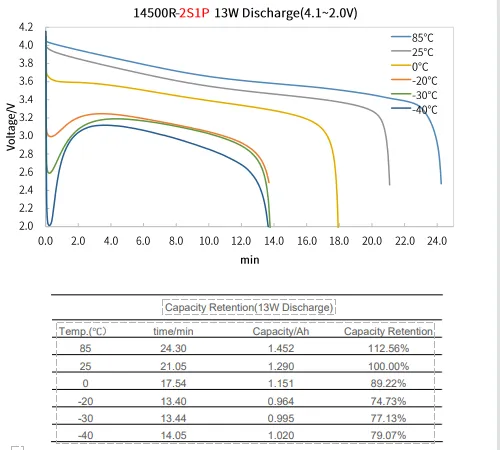

Full technical validation
Accompanied by detailed datasheets and high-temperature charge/discharge test reports as proof of performance and reliability.
7.2V 750mAh 14500 Battery Pack FAQs
What is the MOQ for the 7.2V 2S1P high-temperature battery pack?
The standard MOQ is 300–500 sets, depending on connector type and protection board configuration.
For early-stage testing or device matching, CMB provides engineering samples (≤200 pcs) to help customers validate performance in their devices.
Can this 2S1P pack directly replace two AA or NiMH batteries in series?
Yes. The 7.2V pack is designed as a drop-in replacement for dual-AA layouts with similar dimensions (14.5×102mm or 28.5×50.3mm).
We can adjust lead wires or terminal positions for direct compatibility with your battery compartment.
What is the main difference between the 3.6V and 7.2V 14500 configurations?
The 7.2V version uses two 14500 Li-ion cells in series (2S1P), delivering higher voltage for systems requiring 6–9V input.
It’s ideal for wireless transmitters, sensor modules, and control units that need extra power headroom or higher efficiency.
Can I request specific connectors or nickel tabs pre-installed?
Yes. We can add pre-soldered nickel tabs, Molex/JST connectors, or custom wire terminals according to your assembly process.
This helps shorten your integration and testing time.
What certifications and compliance documents are available for export projects?
CMB offers UN38.3, MSDS, RoHS, and IEC62133 certifications for this pack.
We also support custom documentation for transport or system safety audits upon request.
