High Capacity eFoil Battery Packs
At CM Batteries, we are a trusted leader in designing custom battery packs for efoils, engineered to deliver unmatched performance, safety, and reliability. Our advanced solutions are equipped with intelligent Battery Management Systems (BMS) that expertly manage thermal regulation and prevent short circuits, ensuring optimal operation in the demanding conditions of aquatic environments.
Whether you prioritize extended runtime, lightweight designs, or superior thermal management, CM Batteries provides tailored solutions that elevate the efoil experience. We are committed to pushing the boundaries of innovation, empowering efoil enthusiasts to ride with confidence and performance.
CM Batteries always are enhancing customer value. Our team designs off the shelf and customized efoil batteries solutions to meet the diverse needs of different customers.
CMB’s Custom Battery Packs for Efoils and USVs
CM Batteries is the pioneer in manufacturing custom battery packs for efoils and USVs, leveraging advanced technology to ensure unmatched reliability and performance.
Off the Shelf Battery Pack for Efoils /USVs

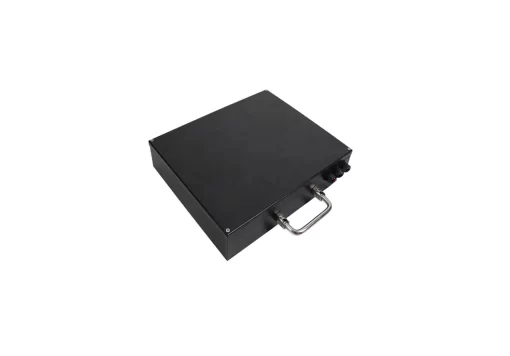

43.2V 24Ah 21700 Li ion Battery for Surfboard
Combination: 12S6P,made of 72pcs 21700 4000mAh cells
Integrated with BMS,continuous discharge current 60A and peak discharge current 150A (<100ms）
Weight: 8.6KG
Chemistry: NCM
Dimension: 87*320*340 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes
Built with cooling technology

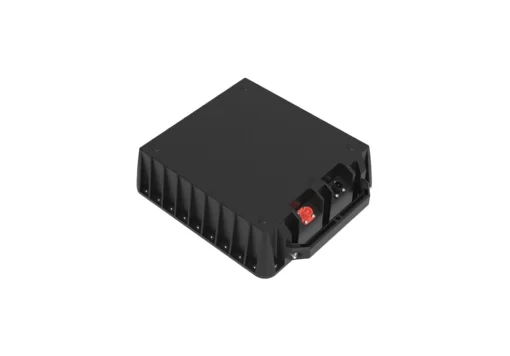

43.2V 27Ah 21700 Li ion Battery Pack for Efoil
Combination: 12S6P,made of All-Pole Tab 21700 45D cells with extremely low internal resistance
Integrated with BMS,continuous discharge current 120A and peak discharge current 200A (<100ms)
Weight: 8.6KG
Dimension: 87*320*340 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes

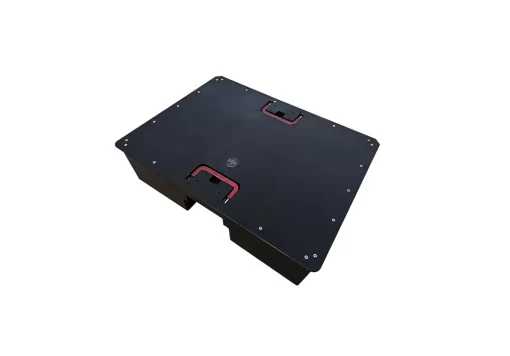

43.2V 48Ah 21700 Li ion Battery Pack for USVs
Combination: 12S12P,made of 144pcs 21700 4000mAh cells
Integrated with BMS,continuous discharge current 120A and peak discharge current 200A (<100ms)
Weight: 13.6KG
Dimension: 87*320*480 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes
Built with cooling technology

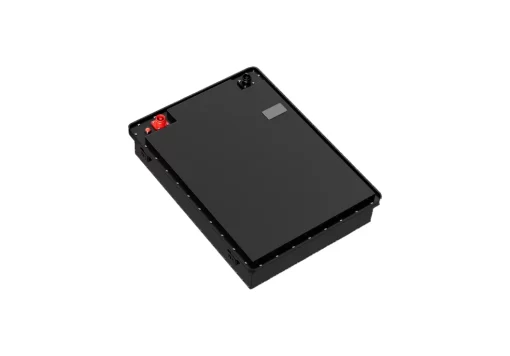

43.2V 54Ah 21700 Off The Shelf for Efoils
Combination: 12S12P,made of All-Pole Tab 21700 45D cells with extremely low internal resistance
Integrated with BMS,continuous discharge current 120A and peak discharge current 200A (<100ms)
Weight: 13.6KG
Dimension: 87*320*480 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes

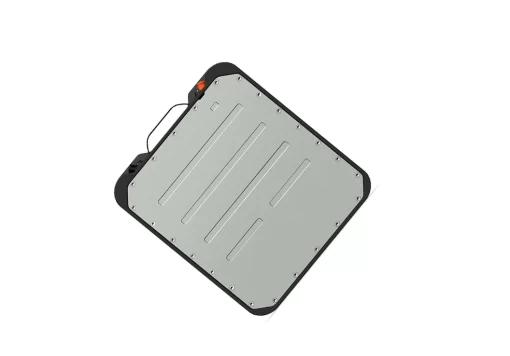

48V 27Ah 21700 Li ion Battery Pack for Efoil
Combination: 13S6P,made of All-Pole Tab 21700 45D cells with extremely low internal resistance
Integrated with BMS,continuous discharge current 120A and peak discharge current 200A (<100ms)
Weight: 9KG
Dimension: 87*365*400 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes

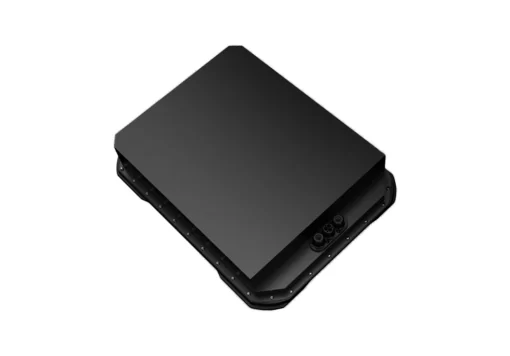

48V 54Ah 21700 Li ion Battery Pack for Efoil
Combination: 13S12P,made of All-Pole Tab 21700 45D cells with extremely low internal resistance
Integrated with BMS,continuous discharge current 120A and peak discharge current 200A (<100ms)
Weight: 14.5KG
Dimension: 87*320*520 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes

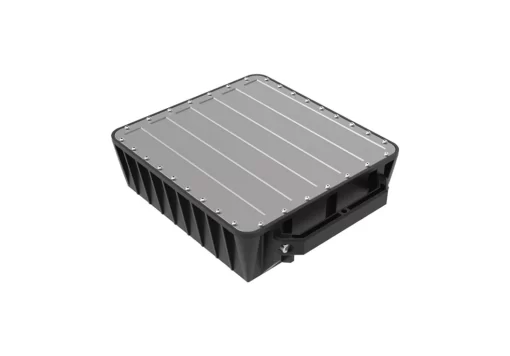

51.8V 54Ah 21700 Li ion Battery Pack for Efoil
Combination: 14S12P,made of All-Pole Tab 21700 45D cells with extremely low internal resistance
Integrated with BMS,continuous discharge current 120A and peak discharge current 200A (<100ms)
Weight: 15KG
Dimension: 87*320*520 (mm)
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes

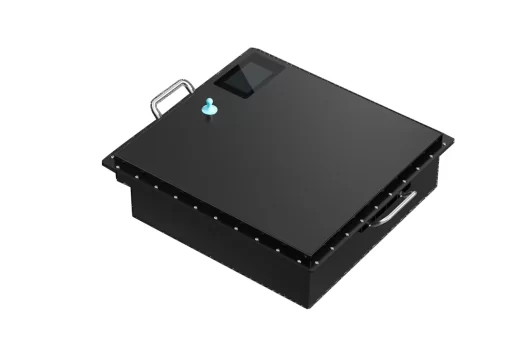

100.8V 54Ah 21700 Battery Pack for USVs
Combination: 28S12P,made of All-Pole Tab 21700 45D cells with extremely low internal resistance
Integrated with BMS,continuous discharge current 220A and peak discharge current 300A (<100ms)
Weight: 30KG
Dimension: Customization to your needs.
Waterproof: IP67,1 meter (about 3.3 feet) deep for up to 30 minutes
Custom Efoil Battery Pack Case Study
Case 1: 50.4V 50Ah eFoil Battery Pack
Product Highlights ：
- High Capacity: 50Ah for extended ride times
- Advanced BMS: Integrated smart Battery Management System with protections against overcharging, short circuits, and overheating.
- High Discharge Capability: Customized to meet the high-current demands of efoil motors.
- IP68 waterproof connector with pre-discharge function.
Case 2: 43.2V 40Ah 14S10P eFoil Battery Pack
Product Highlights:
- Samsung INR21700-40T cell
- Heat dissipation for high discharge current
- Pre-discharge function with the special BMS management strategy
- Waterproof level: IP68
- Protection: over-discharge, overcharge, over-current, and short-circuit protection
21700 VS 18650 Batteries for Real-world Applications
Optimizing Electric Surfboard Battery Performance with Smart BMS
Designing Custom Batteries for eFoils: A Step-By-Step Guide
The Role of C-Rating in Lithium-Ion Battery Pack DesignEfoil Battery Pack FAQ
What voltage do you recommend for eFoil batteries?
Recommended voltages for eFoil batteries range from 36V to 58.8V. A higher voltage provides more power to your electric surfboard. Please consult with your dedicated CMB advisor to determine the best voltage for your electric surfboard’s battery pack.
How long will a charged CM electric surfboard battery run for before having to be recharged?
A number of factors influence how long a custom battery pack will run for in an electric surfboard, including battery capacity and engine wattage. When designing your electric surfboard, confirm the specifications of your custom battery pack first to ensure enough space is provided in the electric surfboard’s design for optimal battery performance and safety.
What is the timeline for designing and manufacturing a custom battery pack for an electric surfboard?
Every custom battery pack is uniquely designed and manufactured to suit the needs of the specific electric surfboard it will be giving power to. A standard development and production timeline is below for general reference, but times may vary.
Battery pack design confirmation: 7 business days
Prototype production: 15 business days
Prototype shipment: 4-6 business days
Open mold for battery case: 4-5 weeks
Bulk manufacturing: 25-30 business days
Certificates approval: 25-90 business days
What types of Battery Management Systems (BMS) does CM offer for electric surfboard batteries?
Our electric surfboard batteries include BMS’s with overcharge protection, over-discharge protection, and short circuit protection. We also offer Smart BMS options by incorporating UART or CANBUS communication protocols into the BMS design. Smart BMS’s ensure the battery is operating in the safest and most optimal manner, and may also prolong battery life.
What is the Development time for your Electric Surfboard Battery Pack?
Do electric surfboard batteries need to be waterproof?
Whether or not a battery’s casing needs to be waterproof depends on the design of the specific electric surfboard it’s providing power to. Some of our customers do not require a waterproof battery pack because the design of their surfboard is waterproof and ensures the battery’s protection from the elements. That being said, the recommended choice for optimal safety and battery longevity is to go with a battery case design with a waterproof rating of IP68, which CM offers.
How do I obtain the specs for my CMB custom battery pack?
CM Batteries has designed battery packs for the electric surfboard for international efoil company. Once your OEM electric surfboard battery design is completed, your design consultant will release the specific eFoil battery specs to you.
Tailored Customization
Our design team can create custom battery designs for just about any device or machine.
Timely Delivery
Our efficient production and distribution process gets your product delivered in a timely manner.
Quality Guarantee
We stand by our products and guarantee you’ll be happy with your purchase.
