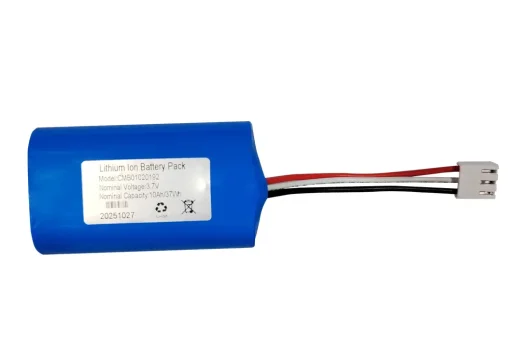

21700 3.7V 1S2P Battery Pack for GPS Navigation Devices
CM Batteries has designed one 21700 3.7V 1S2P battery pack for a GPS navigation device company, enhancing safety and convenience in harsh conditions.
21700 3.7V 1S2P Battery Solution
- Premium Cells: High-quality 21700 battery cells with exceptional performance and longevity.
- Lightweight and Portable: The weight is 152.8g and is easy to integrate and carry within mobile GPS systems.
- Circuit Protection: Integrated with circuit protections including over-discharge, overcharge, short circuit, overcurrent, and cut-off.
- Long Cycle Life: 500 times cycles remaining 80% DOD.
21700 3.7V 1S2P Battery Pack Parameters
| No. | Items | Specification | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 3.7V | Standard discharg at 0.2C |
| 2 | Nominal Capacity | 10Ah | |
| 3 | Standard Discharge Current | 0.2C (1.92A) | |
| 4 | Max Discharge Current | 1C (9.6A) | |
| 5 | Peak Current | Adjustable | last time≤1s |
| 6 | Charge Voltage | 4.2V | |
| 7 | Standard Charge Current | 0.2C(1.92A) | |
| 8 | Fast Charge Current | 0.5C (4.8A) | Charge time :Approx 3.0h |
| 9 | Inner Resistance | ≤69mΩ | AC 1KHZ after 50% charge |
| 10 | Cycle life | ≥300 times until 80% capacity | |
| 11 | Ref. Discharge Cut off Voltage | 2.8V | |
| 12 | Charge Temperature Range | 0°C to 45°C | |
| 13 | Discharge Temperature Range | -20°C to 60°C | |
| 14 | Recommended Storage Temperature | 23 ± 5°C | |
| 15 | Weight | Approx.152.8g | |
| 16 | Battery Cell Model | 21700 | |
| 17 | Configuration | 1S2P | |
| 18 | Size | H*W*L=42.5*25*72mm | With PCM |
| 19 | Connector/Terminal | VH3.96 | |
| 20 | Battery PCM function | Over charge/discharge,over current, short circuit protection | |
| 21 | Battery Warranty | 12 months |
Related Battery Pack Cases
3.6V 6000mAh High Temperature Battery for GPS
7.4V 750mAh LiPo Batteries for Outdoor Monitor
3.6V 2900mAh Battery Pack for Access Control
3.6V 5800mAh Battery Pack for IoT Gateway
3.7V 10Ah 21700 Battery for GPS Navigation Devices FAQs
Can CM Batteries support to make 3.7V 10Ah lithium-ion battery certified?
Of course.We can offer knowledge on battery certifications and provide you certification solution to you.
Is the 3.7V 10Ah battery suitable for other applications?
Yes, CM Batteries also specializes in customizing battery solutions to meet your specific needs.
Is there a warranty on this battery?
Yes, we offer a 12-month warranty.
Can you make other specification of 21700 battery packs?
Yes,our engineering team is designing custom batteries for various of applications.
What’s your MOQ?
We will provide samples for testing without MOQ limit.
