22.2V 4Ah 6S1P Li ion 21700 Battery Pack
Designed for demanding UAV applications, CMB’s 6S1P lithium-ion battery pack delivers a nominal voltage of 22.2V and a capacity of 4Ah, ensuring reliable power for extended flights.Our 22.2V 4Ah 21700 battery packs are featured with low internal resistant ,compact dimension and higher density.
Key features：
- Made of All-Pole Tab 21700 45D cells with extremely low internal resistance

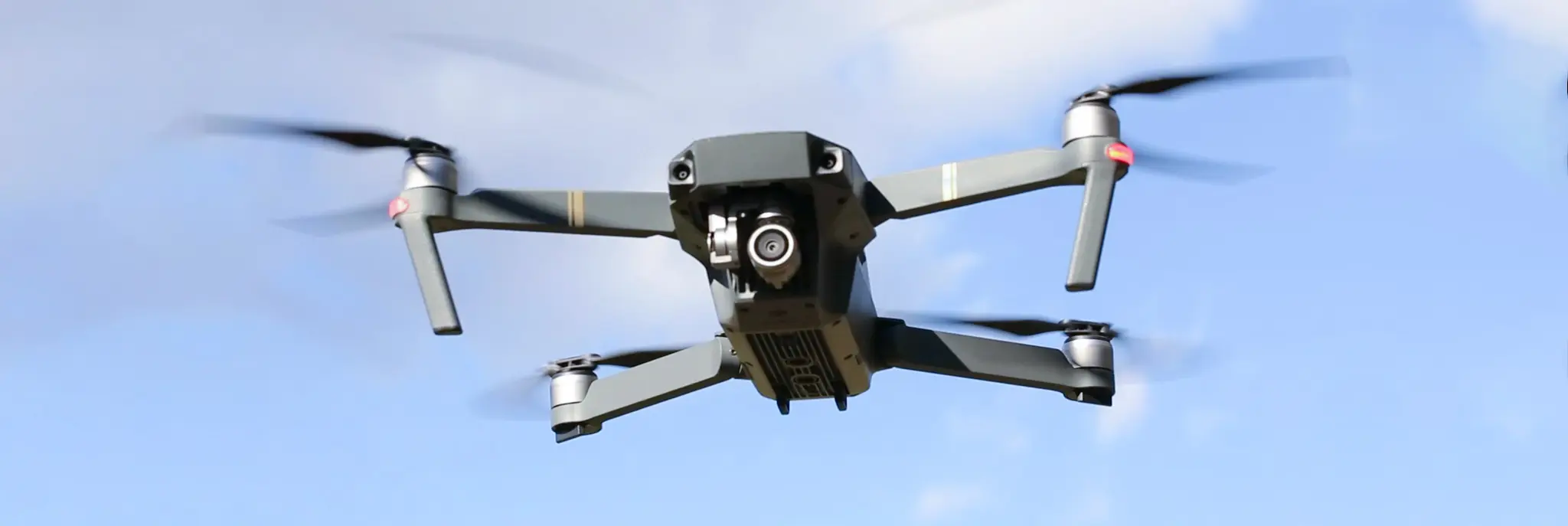

- Application for drones and UAVs
- Integrated with speical BMS solution to monitor the accurate voltage and real-time.
- Optimized configuration: 6S1P high-voltage design meets strict power needs.
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 21.6V | 3.6V/Cell |
| 2 | Nominal Capacity | 4Ah | @0.2C |
| 3 | Minimum Capacity | ≥3900mAh | |
| 4 | Initial Internal Impedance | ≤60mΩ | AC 1KHZ |
| 5 | Standard Charge Voltage | 25.2V | 4.2V/Cell |
| 6 | Standard Charge Current | 0.8A | 0.2C |
| 7 | Max. Charge Current | 20A | 1C |
| 8 | Standard Discharge Current | 4A | 0.2C |
| 9 | Max. Discharge Current | 35A | 8C |
| 10 | Burst Discharge Current | ≤100A | ≤3ms |
| 11 | Discharge Cut-off Voltage | 15.0V | 2.7V/Cell |
| 12 | Cycle Life | ≥500 cycles | Retention: ≥80% |
| 13 | Charge Temperature | 0°C~45°C | Standard Charge |
| 14 | Discharge Temperature | -20°C ~+60°C | Standard Discharge |
| 15 | Storage Temperature | -20°C~ +45°C | ≤3 Months |
| 16 | Weight | About 0.55 | kg |
Related Battery Pack Cases
22.2V 4Ah 21700 battery pack FAQs
How Does Temperature Affect Performance in This High-Rate UAV Battery?
Our 45D 21700 cells have been tested in extreme conditions. At -20°C (-4°F), they maintain about 85% of their discharge capacity. At 60°C (140°F), capacity drops by less than 5%. We can customize cell chemistry for your specific temperature needs.
Can This Battery Handle Power Surges Without Affecting Flight Stability?
Thanks to the ultra-low internal resistance All-Pole Tab design, the voltage stays stable during peak current discharge. Any drop remains within safe limits, ensuring the flight control system stays stable.
What happens if a single cell in the series shows abnormal voltage during flight?
The UAV BMS monitors each series cell in real time. If it detects abnormal voltage, it automatically balances the cells or sends an alert. This allows for intervention via the ground station or flight control system.
Can you supply samples for testing before bulk order?
Yes, we accept the sample orders. We suggest testing the battery in your specific application to ensure compatibility before mass production.
What certifications does this battery pack have?
We can provide UN38.3, MSDS, CE, RoHS, and other required certifications. For special applications, we can arrange additional compliance testing (e.g., IEC62133, UL1642).
