22.2V 18650 Li-ion Battery Pack
CM Batteries manufactureslong-lasting 22.2V 6S 18650 battery packs, ideal for drones and angle grinders. These battery packs feature a specialized battery management system (BMS) designed to address blocking drilling issues, thereby enhancing customer experience. Each 22.2V 6S 18650 battery pack solution is unique, offering the best in performance and safety.
The Features of the 6S 18650 Battery Pack
- BMS Intelligent Design: The BMS includes protection against overcharging, over-discharging, and short circuits, and optional protocols such as RS232, EIA-365, and CAN bus for enhanced communication and control.
- Battery Certification: We assist in obtaining all necessary certifications for various applications, including UN 38.3, IEC 62133, UL 2054, and MSDS, ensuring compliance with international safety and quality standards.
- Battery Quality: Our custom 22.2V battery packs undergo stringent testing and verification processes to ensure reliability and performance.
- Team Experience: With over 10 years of experience and 320 successful 22.2V battery customization projects.
- Customized Service: We offer fully customized battery solutions, including size, shell design, and capacity ranging.
Request a Quote
Custom 22.2V 6S 18650 battery pack Solutions
Detail:
- Made of LG ICR18650HB2 10C discharge rate cell
- Over-discharge, overcharge, and short-circuit protection
- Application: drills and drones
22.2V 3Ah 18650 6S2P Li-ion Battery Pack Parameter Specifications
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 21.9V | 3.65V/Cell |
| 2 | Nominal Capacity | 3Ah | @0.2C |
| 3 | Minimum Capacity | 2.8Ah | / |
| 4 | Shipment Voltage | / | / |
| 5 | Initial Internal Impedance | ≤100mΩ | AC 1KHZ |
| 6 | Standard Charge Voltage | 25.2V | 4.2V/Cell |
| 7 | Standard Charge Current | 0.6A | @0.2C |
| 8 | Max. Charge Current | 3A | BMS Limit |
| 9 | Standard Discharge Current | 20A | @0.2C |
| 10 | Max. Discharge Current | 44A | / |
| 11 | Burst Discharge Current | / | / |
| 12 | Discharge Cut-off Voltage | 15V | 2.5V/Cell |
| 13 | Cycle Life | ≥500 cycles | Retention: ≥80% |
| 14 | Charge Temperature | 0°C~45°C | Standard Charge |
| 15 | Discharge Temperature | -20°C ~70°C | Standard Discharge |
| 16 | Storage Temperature | -20°C~ 45°C | ≤3 Months |
| 0°C ~ 25°C | ≤1 Year | ||
| 17 | Weight | About 850g | / |
| 18 | Special Request | / | / |

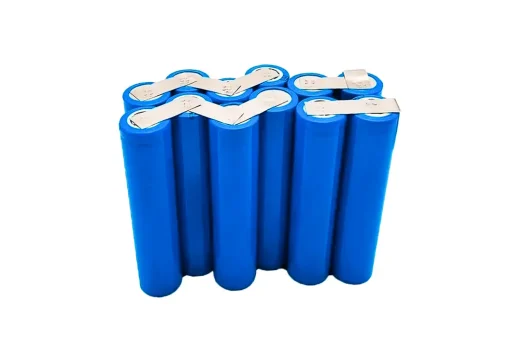

- 22.2V 3Ah 6S2P Battery Pack
-
Detail:
- Made of LG ICR18650HB2 10C discharge rate cell
- Over-discharge, overcharge, and short-circuit protection
- Application: drills and drones
22.2V 3Ah 18650 6S2P Li-ion Battery Pack Parameter Specifications
No. Item Parameter Remark 1 Nominal Voltage 21.9V 3.65V/Cell 2 Nominal Capacity 3Ah @0.2C 3 Minimum Capacity 2.8Ah / 4 Shipment Voltage / / 5 Initial Internal Impedance ≤100mΩ AC 1KHZ 6 Standard Charge Voltage 25.2V 4.2V/Cell 7 Standard Charge Current 0.6A @0.2C 8 Max. Charge Current 3A BMS Limit 9 Standard Discharge Current 20A @0.2C 10 Max. Discharge Current 44A / 11 Burst Discharge Current / / 12 Discharge Cut-off Voltage 15V 2.5V/Cell 13 Cycle Life ≥500 cycles Retention: ≥80% 14 Charge Temperature 0°C~45°C Standard Charge 15 Discharge Temperature -20°C ~70°C Standard Discharge 16 Storage Temperature -20°C~ 45°C ≤3 Months 0°C ~ 25°C ≤1 Year 17 Weight About 850g / 18 Special Request / /
More Technical Articles on 18650 Battery Pack
22.2V 6s 18650 Battery Pack FAQ
Does CMB provide custom 22.2V 18650 li ion battery packs?
Of course, we can design 22.2V 18650 li-ion battery packs for your needs.
What kinds of brand cells are assemblied into 22.2V lithium ion battery packs?
We will assemble your 22.2V lithium-ion battery packs with the specific brand cells that are compatible with your needs. We have Samsung, Panasonic, LG, BAK, Molicell, etc famous brand cells.
What is the MOQ for 22.2V 18650 li ion battery pack?
The MOQ is 200pcs.
Can we use the standard li ion charger for 22.2V 18650 li ion battery pack?
Please charge the battery with the dedicated 22.2V lithium battery from the 18650 battery manufacturer.
