6.4V 16Ah Low Temperature LiFePO4 Battery Pack for Outdoor Monitoring & Security Equipment
On March 10, 2026, an outdoor security-equipment manufacturer came to CM Batteries with a field reliability problem. Units at remote, off-grid monitoring sites were losing power overnight as temperatures fell, and the existing LiFePO4 battery pack was too large for the camera housing already tooled for production. The customer needed a low temperature battery pack that fit the existing enclosure and met the specified pack-level protection requirements before the next production run.
Within a few weeks, CM Batteries confirmed the root cause, selected a low-temperature 26650 cell, and delivered a validated 6.4V 16Ah 2S5P low temperature LiFePO4 battery pack that met the customer’s runtime, size, and safety requirements without changing the camera housing.
Security Camera Customer Overview
The customer is a mid-sized manufacturer of solar-powered outdoor security cameras, supplying integrators who deploy monitoring equipment at remote job sites, agricultural land, and unmanned infrastructure. Their product line covers both standard outdoor cameras and ruggedized units built for winter deployment in northern climates.
As demand grows for off-grid monitoring in colder regions, battery performance in low temperatures has become a direct driver of the customer’s field-failure rate and warranty costs — a single unit going dark overnight can mean a blind spot at a client’s site for days before anyone notices.

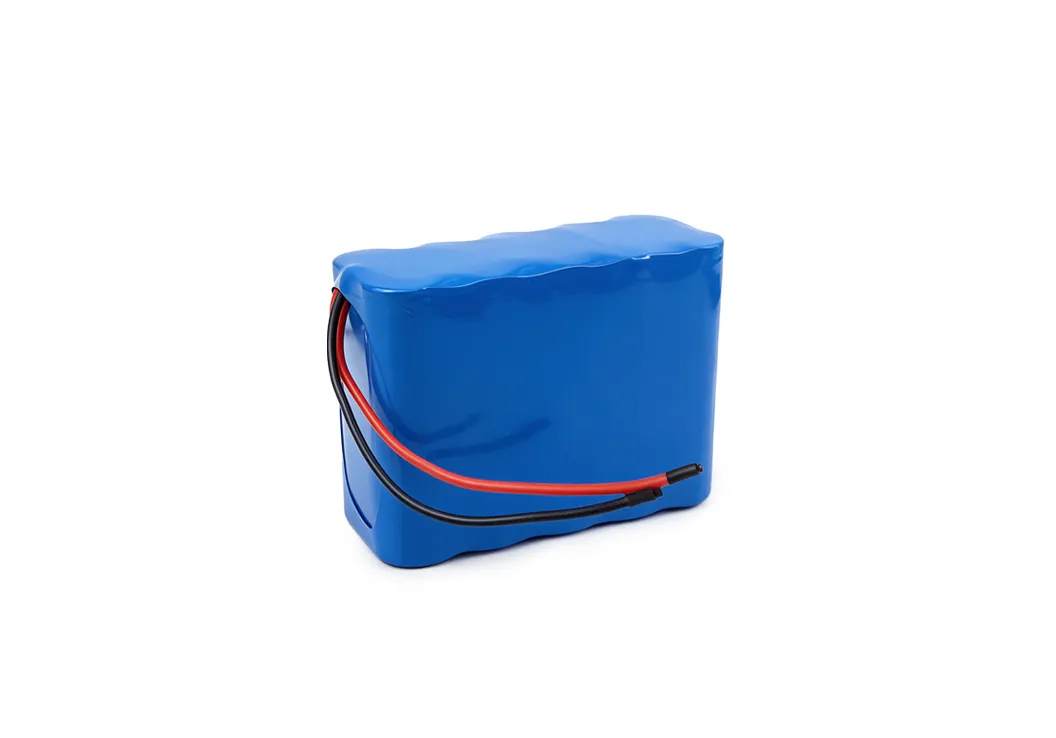

6.4V 16Ah 2S5P 26650 LiFePO4 Security Camera Battery Pack Design
Product Highlights
- Nominal voltage: 6.4V
- Operating temperature: -20°C to 60°C
- Capacity: 16Ah
- Configuration: 2S5P, 10 cells
- Operating temperature: -20°C to 60°C
- Protection: Over-discharge, over-charge, and ESD protection built in
- Enclosure: PVC heat-shrink film, low-profile
- Certification: ISO 9001-manufactured; UL / CE / IEC
- Custom options: Voltage, capacity, connector type, and enclosure material
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 6.4V | |
| 2 | Nominal Capacity | 16Ah | |
| 3 | Minimum Capacity | 15Ah | |
| 4 | Shipment Voltage | / | |
| 5 | Initial Internal Impedance | ≤52mΩ | AC 1kHz |
| 6 | Standard Charge Voltage | 7.3V | |
| 7 | Standard Charge Current | 3.2A | |
| 8 | Max. Charge Current | 8A | |
| 9 | Standard Discharge Current | 3.2A | |
| 10 | Max. Discharge Current | 48A | |
| 11 | Burst Discharge Current | 96A | ≤300ms |
| 12 | Discharge Cut-off Voltage | 5.0V | |
| 13 | Cycle Life | ≥1500 cycles | Retention ≥80% |
| 14 | Charge Temperature | 0°C ~ +45°C | Standard Charge |
| 15 | Discharge Temperature | -20°C ~ +60°C | Standard Discharge |
| 16 | Storage Temperature | -20°C ~ +35°C | ≤3 months |
| -20°C ~ +25°C | ≤1 year | ||
| 17 | Weight | About 0.9 kg | |
| 18 | Special Request | Low-temperature |
6.4V 16Ah 26650 LiFePO4 Battery Pack FAQs
Why does a security camera battery fail specifically in cold weather?
Standard lithium-ion cells lose usable capacity as temperature drops because internal resistance rises and ion mobility slows. Below a certain threshold, the pack can no longer sustain the camera’s load even at a high state of charge. Low-temperature-rated 26650 LiFePO4 cells are formulated to keep more of that capacity usable in cold conditions.
Can this 6.4V 16Ah pack be resized for a different camera housing?
Yes. The 2S5P configuration used here is specific to this project’s housing dimensions. CMB can reconfigure the series/parallel arrangement to fit a different footprint while keeping the same low-temperature cell chemistry.
Is ESD protection necessary for outdoor battery packs?
SIt’s strongly recommended for any pack that field technicians will handle during installation or servicing, since static discharge during connector handling can damage unprotected battery management circuitry.
