7.4V 750mAh LiPo Batteries for Outdoor Monitor System Devices

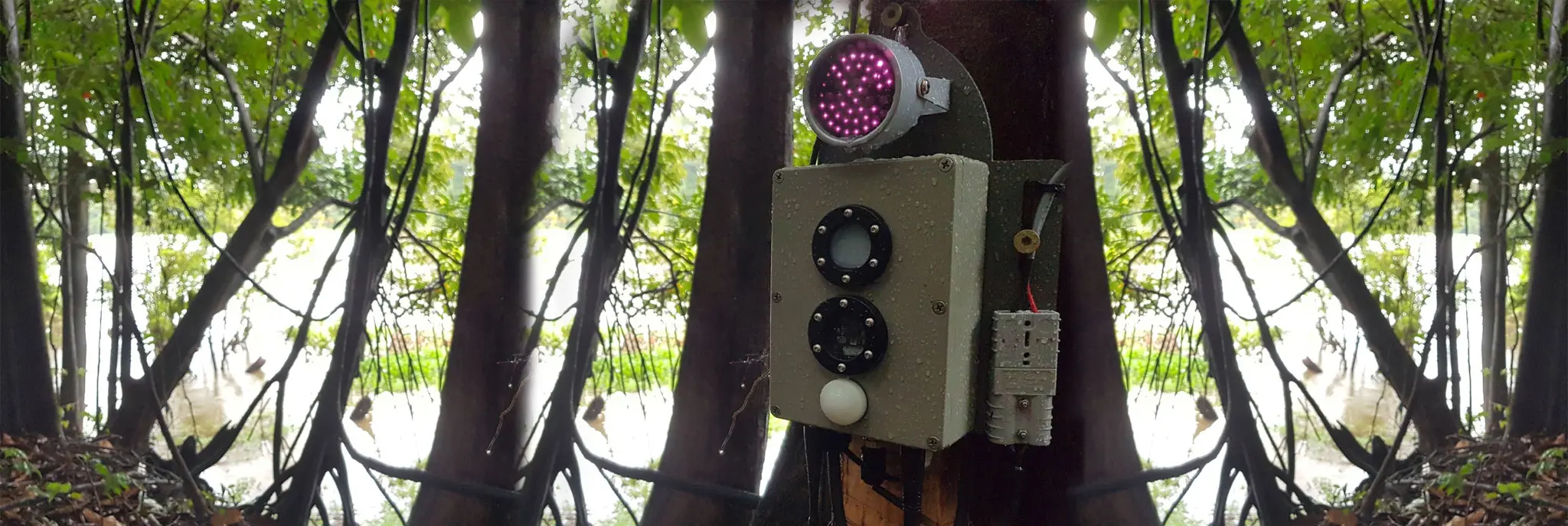

As a manufacturer specializing in custom battery packs, We design and customize professional lithium-ion battery pack solutions for remote camera monitoring, remote outdoor cameras, outdoor monitor system devices, and outdoor and home wireless security cameras. They can work for a long time in high-temperature deserts and charge at low temperatures at night. The battery pack has passed the IP67 test and can perfectly complete the work task even in the tropical rain forest.
By choosing our customized lithium polymer battery, manufacturers of outdoor monitor system devices can benefit from reliable power performance, temperature resilience, and compact design, backed by our commitment to quality and warranty support.
Details:
- Wide Temperature Range: Our batteries offer standard discharge capabilities ranging from -10°C to +70°C, making them suitable for outdoor use in various climates and temperatures.
- High-quality Battery Cells: Made up of two 3.7V 750mAh LiPo cells, optimized for power output and longevity.
- Compact Size: With dimensions of 14*20*50 (mm), our battery packs are designed to be compact yet efficient, ideal for integration into space-constrained devices.
- Temperature Monitoring: The inclusion of a 10K NTC (Negative Temperature Coefficient) sensor allows for temperature monitoring, ensuring safe and efficient battery operation.
- Connector Compatibility: Our battery packs feature a JST-VHR-4N connector, providing a reliable and secure connection for seamless integration into monitor system devices.
7.4V 750mAh High Temperature LiPo Battery Parameter Specifications
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 7.4V | 3.2V/Cell |
| 2 | Nominal Capacity | 0.75Ah | @0.2C |
| 3 | Minimum Capacity | 0.75Ah | / |
| 4 | Initial Internal Impedance | ≤250mΩ | 3.7V AC 1KHz measured |
| 5 | Standard Charge Voltage | 8.4V | 4.2V/Cell |
| 6 | Standard Charge Current | 0.15A | @0.2C |
| 7 | Max. Charge Current | 0.75A | BMS Limit |
| 8 | Standard Discharge Current | 0.15A | @0.2C |
| 9 | Max. Discharge Current | 2A | / |
| 10 | Burst Discharge Current | 2.5-3A | ≤15ms |
| 11 | Discharge Cut-off Voltage | 4.8V | 2.4V/Cell |
| 12 | Cycle Life | ≥300 cycles | Retention: ≥60% |
| 13 | Charge Temperature | 0°C~45°C | Standard Charge |
| 14 | Discharge Temperature | -10°C ~70°C | Standard Discharge |
| 15 | Storage Temperature | -20°C~ 35°C | ≤3 Months |
| 0°C ~ 30°C | ≤1 Year | ||
| 16 | Weight | About 0.025kg | / |
Request a Quote
IoT Battery Pack Applications
How to Choose the Right Batteries for IoT Devices?
Maximizing Efficiency In Custom GPS Tracker Batteries
21700 VS 18650 Batteries for Real-world Applications
The Role of C-Rating in Lithium-Ion Battery Pack Design7.4V 750mAh Outdoor Monitor Batteries FAQs
What pre-cycle process is involved before testing your batteries?
Before testing, we perform a pre-cycle by charging the battery at 0.2C5A at an ambient temperature of 25±5°C until it reaches the charge limit voltage. Then, we hold it for 0.5 to 1 hour before discharging it at 0.2C5A to the cut-off voltage.
Can you explain the charging and discharging test methods for your batteries?
We conduct standard charging and fast charging tests, ensuring that charging currents reach less than 0.02C5A within 8 hours. Discharge tests involve standard and rapid discharge methods, ensuring specific discharge times and capacities based on our battery specifications.
How do your batteries perform in extreme temperature conditions?
Our batteries undergo rigorous testing for high-temperature performance (at +70°C) and low-temperature performance (at -10°C), ensuring discharge capacities and safety standards are met under these conditions.
What safety protection features do your batteries have?
Our batteries are tested for overcharge protection, over-discharge protection, and external short-circuit tests to ensure they meet safety standards and do not exhibit hazardous behaviors such as fire, explosion, or leakage.
How do you ensure battery reliability during transportation and storage?
During transportation, our batteries are packed securely at a 30% load to prevent vibration, impact, or squeeze damage. They are designed to withstand various transportation conditions, including sea, land, and air transport, while also being protected from sun and rain exposure.
