Custom 25.6V LiFePO4 Battery Pack
CM Batteries specializes in manufacturing custom 25.6V LiFePO4 battery packs tailored for industrial applications, offering a wide range of capacities, sizes, and configurations. With 15 years of expertise, we are committed to addressing industry challenges—extending cycle life and enhancing reliability even in the harshest operating conditions.
Applications of 25.6V LiFePO4 Battery Packs
Electric Boats
IP68 waterproof battery packs – Reliable marine-grade power for electric propulsion and onboard electronics.
Remote Camera Systems
Desert-capable power solution – Long-lasting energy supply for cameras and cellular bonding devices in extreme environments.
Electric Carts & Utility Vehicles
IEC62133 certified – Safe and compliant power for golf carts, industrial transporters, and mobility vehicles.
Robotic Lawn Mowers
Compact & lightweight design – High-energy-density batteries optimized for autonomous mowing systems.
Custom 25.6V Lithium Iron Phosphate Battery Pack Solutions
25.6V 30Ah LiFePO4 Battery Pack
8S9P, made of 72pcs 3.2V 26650 3400mAh LiFePO4 explosion proof cells
IP68 Rated for 2 Meters Submersion
Waterproof aluminum alloy enclosure with waterproof seal gasket and waterproof connector
Integrated with BMS for 20A discharge current with RS485 communication protocol

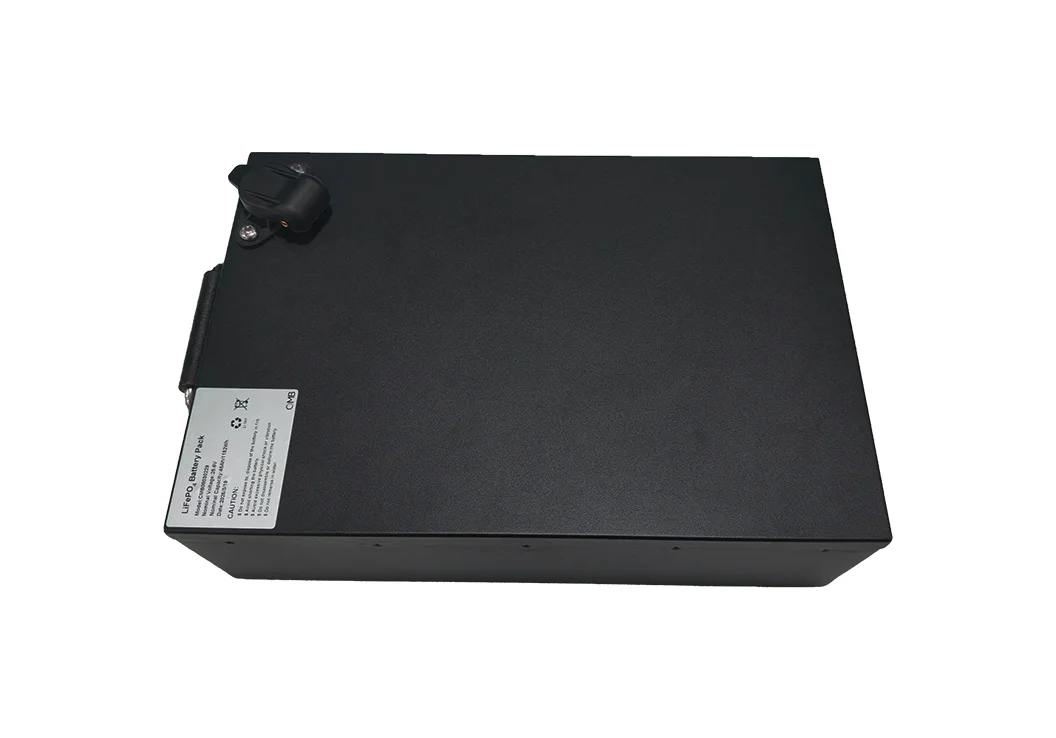

25.6V 45Ah LiFePO4 Battery Pack
Configuration :8S3P, made of 32140 LiFePO4 cells
Rated capacity :45Ah, nominal voltage 25.6V
Lighter weight :9.5KG, more compact than lead-acid alternatives
Compact size :336.5×225×107.5mm
Waterproof grade :IP65, suitable for outdoor environments

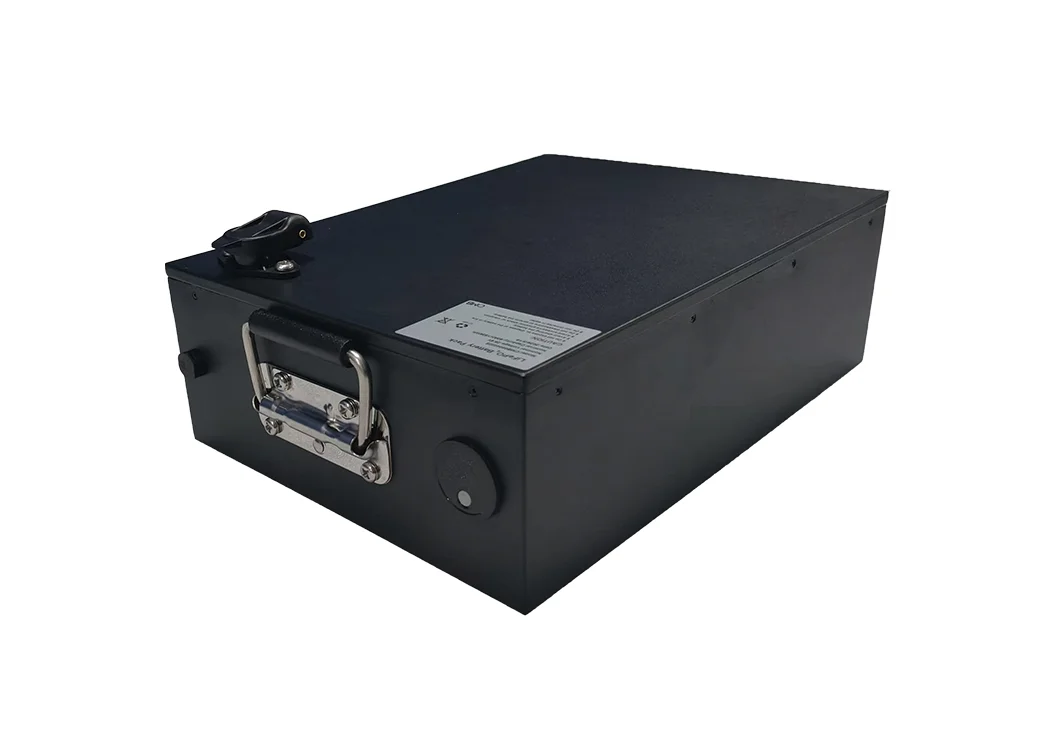

25.6V 60Ah LiFePO4 Battery Pack
Configuration :8S4P,made of 32pcs LiFePO4 32140 modules
Housing material:Aluminium Alloy
Replace AGM batteries with the same structure
Lighter weight :11.5KG
Waterproof grade :IP65
25.6V 102Ah LiFePO4 Battery Pack
8S1P,made of 8pcs 3.2V 102Ah EVE LiFePO4 LF1002A cells
BMS for 100A continuous discharge current and 200A peak discharge current
Battery comply with IEC62133 safety standards
Communication: RS-485
Dimension: 315*145*240 (mm)
25.6V 120Ah LiFePO4 Battery Pack
Nominal voltage :25.6V, rated capacity 120Ah
Cycle life :≥2000 cycles (≥70% capacity retention)
Waterproof grade :IP67, submersible up to 1 meter for 30 minutes
Charge current :Standard 24A, max 50A
Communication :RS485 supported

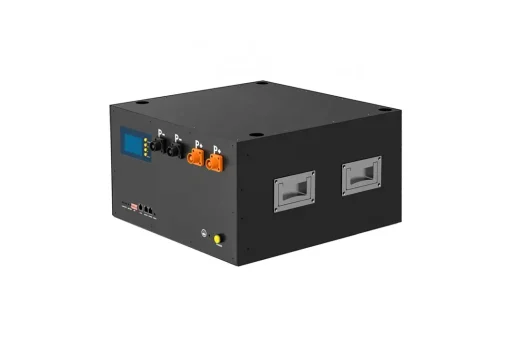

25.6V 314Ah LiFePO4 Battery Pack
8S1P,made of EVE 3.2V 314Ah LiFePO4 cells
Housing: Metal to meet your needs
Monitor the SOC status
Communication: CANBUS
Dimension: 650* 260* 260 mm
Related Custom LiFePO4 Battery Pack Solutions
More Technical Articles on Custom LiFePO4 Battery Pack
Custom Rechargeable 25.6 Volt lithium iron phosphate Battery Pack FAQ
Can I purchase just one battery pack?
Yes, we specialize in creating fully customizable battery packs tailored to your specific dimensional, voltage, and capacity requirements.
Can the battery pack be designed to specific dimensions?
Yes, we specialize in creating fully customizable battery packs tailored to your specific dimensional, voltage, and capacity requirements.
Can these batteries operate in extreme temperatures?
Yes, our 25.6V LiFePO4 batteries are designed to perform reliably in temperatures ranging from -20°C to 60°C, making them ideal for use in harsh and demanding environments.
Tailored Customization
Our design team can create custom battery designs for just about any device or machine.
Timely Delivery
Our efficient production and distribution process gets your product delivered in a timely manner.
Quality Guarantee
We stand by our products and guarantee you’ll be happy with your purchase.
