48V 18650 Li-ion Battery Pack
Unlock the full potential of your electric applications with CMB’s cutting-edge 48V 18650 Li-ion battery packs. Engineered for excellence and tailored to your specific needs, our solutions drive the future of e-mobility and energy storage.
The Features of the 48V 13S 18650 Battery Pack
Unparalleled Expertise
- Over a decade of experience in designing and manufacturing 48V battery packs
- Comprehensive certification support: UN 38.3, IEC 62133, UL 2054, MSDS.
Customization at Its Finest
- Wide capacity range up to 200Ah to meet diverse power requirements
- Various shapes and designs to fit your specific application
- Flexible connector options: XT60, Anderson, or your preferred choice
- Built-in custom Battery Management System (BMS) for optimal performance and safety
- Protection against over-discharge, overcharge, and short circuits
- Enhanced efficiency and longevity of your battery pack
- Ideal for electric bikes, revolutionizing personal transportation
- Power drones for extended flight times and increased payload capacity
- Efficient energy storage solutions for various industrial and residential needs
- Comprehensive pre-delivery inspection and aging tests
- Adherence to international safety and quality standards
- Reliable performance in demanding environments
Custom 48V 18650 Li-ion Battery Pack Solutions
To learn more about our 13S 18650 battery pack solutions, click on the item titles below.
Detail:
- Made of 52pcs 18650 2600mAh cells
- Integrated BMS and battery holders
- Application for Solar LED

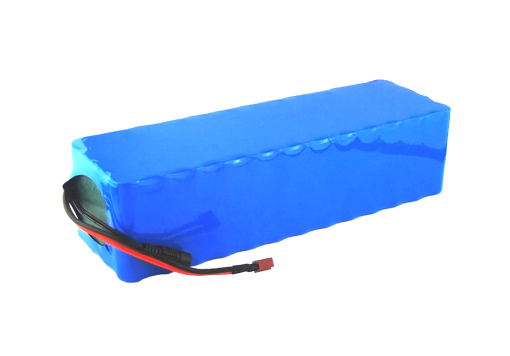

48V 10Ah 18650 13S4P Li-ion Battery Pack Parameter Specifications
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 48.1V | 3.7V/Cell |
| 2 | Nominal Capacity | 10.4Ah | @0.2C |
| 3 | Minimum Capacity | 10Ah | / |
| 4 | Shipment Voltage | / | / |
| 5 | Initial Internal Impedance | ≤200mΩ | AC 1KHZ |
| 6 | Standard Charge Voltage | 54.6V | 4.2V/Cell |
| 7 | Standard Charge Current | 2A | @0.2C |
| 8 | Max. Charge Current | 5A | BMS Limit |
| 9 | Standard Discharge Current | 10A | / |
| 10 | Max. Discharge Current | 15A | / |
| 11 | Burst Discharge Current | / | / |
| 12 | Discharge Cut-off Voltage | 32.5V | 2.5V/Cell |
| 13 | Cycle Life | ≥500 cycles | Retention: ≥80% |
| 14 | Charge Temperature | 0°C~45°C | Standard Charge |
| 15 | Discharge Temperature | -20°C ~60°C | Standard Discharge |
| 16 | Storage Temperature | -20°C~ 45°C | ≤3 Months |
| 0°C ~ 25°C | ≤1 Year | ||
| 17 | Weight | About 2.8kg | / |
| 18 | Special Request | / | / |
Detail:
- The battery is made of 78pcs famous brand 18650 2600mAh cells.
- Built-in LED display and BMS.
- The full voltage is 54.6V.

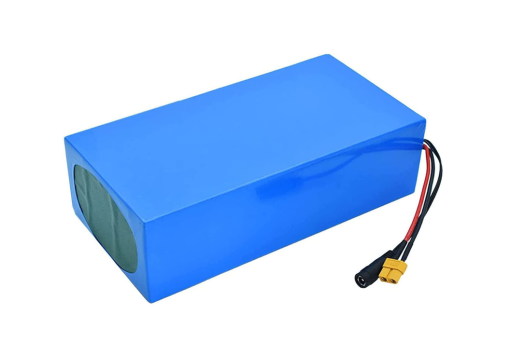

48V 15Ah 18650 13S6P Li-ion Battery Pack Parameter Specifications
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 48.1V | 3.7V/Cell |
| 2 | Nominal Capacity | 15.6Ah | @0.2C |
| 3 | Minimum Capacity | 15Ah | / |
| 4 | Shipment Voltage | / | / |
| 5 | Initial Internal Impedance | ≤200mΩ | AC 1KHZ |
| 6 | Standard Charge Voltage | 54.6V | 4.2V/Cell |
| 7 | Standard Charge Current | 3.12A | @0.2C |
| 8 | Max. Charge Current | 5A | BMS Limit |
| 9 | Standard Discharge Current | 15A | / |
| 10 | Max. Discharge Current | 25A | / |
| 11 | Burst Discharge Current | / | / |
| 12 | Discharge Cut-off Voltage | 35.75V | 2.75V/Cell |
| 13 | Cycle Life | ≥500 cycles | Retention: ≥80% |
| 14 | Charge Temperature | 0°C~45°C | Standard Charge |
| 15 | Discharge Temperature | -20°C ~60°C | Standard Discharge |
| 16 | Storage Temperature | -20°C~ 45°C | ≤3 Months |
| 0°C ~ 25°C | ≤1 Year | ||
| 17 | Weight | About 4.1kg | / |
| 18 | Special Request | / | / |
Detail:
- Made of 91pcs Samsung 18650 35E cells
- With good insulation and heat radiation function
- Shapes and dimensions are customized to your needs
- Application: Electric bicycles/Electric Scooters/Electric wheelchairs

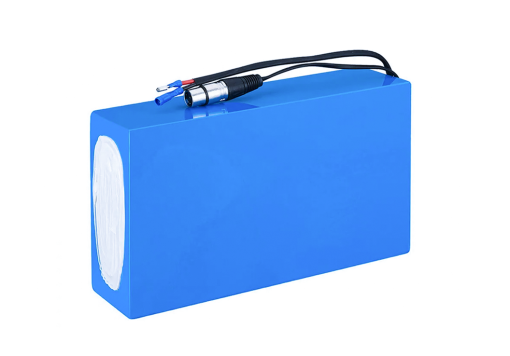

48V 20Ah 18650 13S7P Li-ion Battery Pack Parameter Specifications
| No. | Item | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 46.8V | 3.6V/Cell |
| 2 | Nominal Capacity | 20.3Ah | @0.2C |
| 3 | Minimum Capacity | 19.95Ah | / |
| 4 | Shipment Voltage | / | / |
| 5 | Initial Internal Impedance | ≤200mΩ | AC 1KHZ |
| 6 | Standard Charge Voltage | 54.6V | 4.2V/Cell |
| 7 | Standard Charge Current | 4.06A | @0.2C |
| 8 | Max. Charge Current | 10A | BMS Limit |
| 9 | Standard Discharge Current | 20A | / |
| 10 | Max. Discharge Current | 30A | / |
| 11 | Burst Discharge Current | / | / |
| 12 | Discharge Cut-off Voltage | 32.5V | 2.5V/Cell |
| 13 | Cycle Life | ≥500 cycles | Retention: ≥80% |
| 14 | Charge Temperature | 0°C~45°C | Standard Charge |
| 15 | Discharge Temperature | -20°C ~60°C | Standard Discharge |
| 16 | Storage Temperature | -20°C~ 45°C | ≤3 Months |
| 0°C ~ 25°C | ≤1 Year | ||
| 17 | Weight | About 4.8kg | / |
| 18 | Special Request | / | / |
- 48V 10Ah 13S4P Battery Pack
-
Detail:
- Made of 52pcs 18650 2600mAh cells
- Integrated BMS and battery holders
- Application for Solar LED
48V 10Ah 18650 13S4P Li-ion Battery Pack Parameter Specifications
No. Item Parameter Remark 1 Nominal Voltage 48.1V 3.7V/Cell 2 Nominal Capacity 10.4Ah @0.2C 3 Minimum Capacity 10Ah / 4 Shipment Voltage / / 5 Initial Internal Impedance ≤200mΩ AC 1KHZ 6 Standard Charge Voltage 54.6V 4.2V/Cell 7 Standard Charge Current 2A @0.2C 8 Max. Charge Current 5A BMS Limit 9 Standard Discharge Current 10A / 10 Max. Discharge Current 15A / 11 Burst Discharge Current / / 12 Discharge Cut-off Voltage 32.5V 2.5V/Cell 13 Cycle Life ≥500 cycles Retention: ≥80% 14 Charge Temperature 0°C~45°C Standard Charge 15 Discharge Temperature -20°C ~60°C Standard Discharge 16 Storage Temperature -20°C~ 45°C ≤3 Months 0°C ~ 25°C ≤1 Year 17 Weight About 2.8kg / 18 Special Request / / - 48V 15Ah 13S6P Battery Pack
-
Detail:
- The battery is made of 78pcs famous brand 18650 2600mAh cells.
- Built-in LED display and BMS.
- The full voltage is 54.6V.
48V 15Ah 18650 13S6P Li-ion Battery Pack Parameter Specifications
No. Item Parameter Remark 1 Nominal Voltage 48.1V 3.7V/Cell 2 Nominal Capacity 15.6Ah @0.2C 3 Minimum Capacity 15Ah / 4 Shipment Voltage / / 5 Initial Internal Impedance ≤200mΩ AC 1KHZ 6 Standard Charge Voltage 54.6V 4.2V/Cell 7 Standard Charge Current 3.12A @0.2C 8 Max. Charge Current 5A BMS Limit 9 Standard Discharge Current 15A / 10 Max. Discharge Current 25A / 11 Burst Discharge Current / / 12 Discharge Cut-off Voltage 35.75V 2.75V/Cell 13 Cycle Life ≥500 cycles Retention: ≥80% 14 Charge Temperature 0°C~45°C Standard Charge 15 Discharge Temperature -20°C ~60°C Standard Discharge 16 Storage Temperature -20°C~ 45°C ≤3 Months 0°C ~ 25°C ≤1 Year 17 Weight About 4.1kg / 18 Special Request / / - 48V 20Ah 13S7P Battery Pack
-
Detail:
- Made of 91pcs Samsung 18650 35E cells
- With good insulation and heat radiation function
- Shapes and dimensions are customized to your needs
- Application: Electric bicycles/Electric Scooters/Electric wheelchairs
48V 20Ah 18650 13S7P Li-ion Battery Pack Parameter Specifications
No. Item Parameter Remark 1 Nominal Voltage 46.8V 3.6V/Cell 2 Nominal Capacity 20.3Ah @0.2C 3 Minimum Capacity 19.95Ah / 4 Shipment Voltage / / 5 Initial Internal Impedance ≤200mΩ AC 1KHZ 6 Standard Charge Voltage 54.6V 4.2V/Cell 7 Standard Charge Current 4.06A @0.2C 8 Max. Charge Current 10A BMS Limit 9 Standard Discharge Current 20A / 10 Max. Discharge Current 30A / 11 Burst Discharge Current / / 12 Discharge Cut-off Voltage 32.5V 2.5V/Cell 13 Cycle Life ≥500 cycles Retention: ≥80% 14 Charge Temperature 0°C~45°C Standard Charge 15 Discharge Temperature -20°C ~60°C Standard Discharge 16 Storage Temperature -20°C~ 45°C ≤3 Months 0°C ~ 25°C ≤1 Year 17 Weight About 4.8kg / 18 Special Request / /
More Technical Articles on 18650 Battery Pack
48V 13S 18650 Battery Pack FAQ
Does CMB provide custom 48V 18650 li ion battery packs?
Of course, we can design 48V 18650 li-ion battery packs for your needs.
What kinds of brand cells are assembled into 48V lithium ion battery packs?
We will assemble your 48V lithium-ion battery packs with the specific brand cells that are compatible with your needs. We have Samsung, Panasonic, LG, BAK, Molicell, etc famous brand cells.
What is the MOQ for 48V 18650 li ion battery pack?
The MOQ is 200pcs.
Can we use the standard li ion charger for 48V 18650 li ion battery pack?
Please charge the battery with the dedicated 48V lithium battery from the 18650 battery manufacturer.
